37kW Electric Conduit PVC Pipe Making Machine 39.6 Rpm

Name: 37kW Electric Conduit PVC Pipe Making Machine 396 Rpm
Brand: SINO-HOLYSON
Price: 11 USD

Quality 37kW Electric Conduit PVC Pipe Making Machine 39.6 Rpm for sale

Place of Origin : Shandong, China

Brand Name : SINO-HOLYSON

Packaging Details : 20GP Full Container Loading

Price : $11,500.00 - $62,500.00/sets

Condition : New

Plastic Processed : PVC

Application : PIPE

Screw Design : Double-screw

Twin Screw Type : Counter-rotating conical Twin-screw

Screw Material : 38CrMoAl

Screw diameter (mm) : 65/132

Screw L/D Ratio : 22:1

Screw Speed (rpm) : 39.6 rpm

Showroom Location : Egypt, India, None

Voltage : 380V 50HZ 3Phase(Customized)

Dimension(L*W*H) : CAPACITY

Power (kW) : 37

Weight : 5000 KG

Warranty : 12 Month

Key Selling Points : High-accuracy

Applicable Industries : Manufacturing Plant

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Gearbox

Machinery Test Report : Provided

Color : Customizable

After Warranty Service : Online support

Marketing Type : New Product 2022

Contact Now

37kW Power SJZ-65/132 Electric Conduit PVC Pipe Making Machine with 22 1 Screw L/D Ratio

37kW Electric Conduit PVC Pipe Making Machine 39.6 Rpm

Product Description

HIGHER EFFICIENCY Design

4 Cavity PVC Electric Conduit Pipe Making Machine

HSJZ-65/132 PVC Pipe Making Machine, this plant is specially design for electric conduits, size φ16-32mm, which will greatly improve the production efficiency. A 4-cavity machine can make 4 PVC Pipe at one time, each cavity production speed can reach to 12-15min/min.

Extruder Model	Mould	Pipe Size	Driving Motor	Output Capacity
HSJZ-51/105	2-Outlet	16-40mm	22kw	60-100kg/h
HSJZ-65/132	2-Outlet	16-63mm	37kw	100-250kg/h
HSJZ-65/132	4 - Outlet	16-32mm	37kw	100-250kg/h
HSJZ-80/156	4 - Outlet	16-50mm	55kw	200-400kg/h

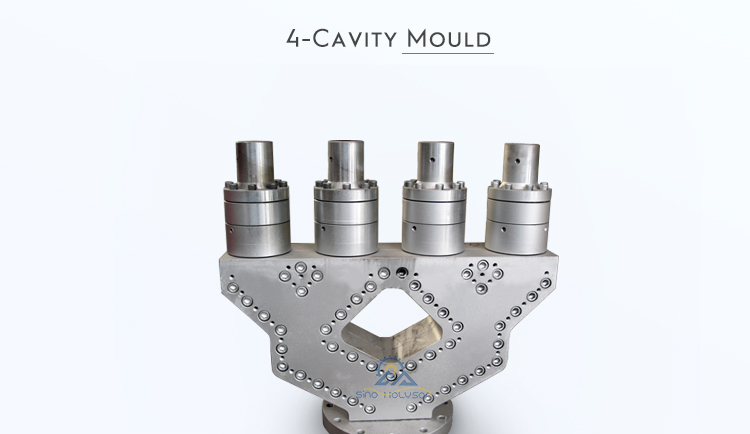

4 Cavity Electric Conduit

Size: 16-32mm

Detail Images

Downstream Machine

HSRL-Z 300/600L PVC Mixer

Inverter Start: 55kw

Output Capacity: 400-600kg/h

HSMF-500 Plastic Pulverizer

Motor: 45/55kw Optional

Output Capacity: 150-250kg/h

Function: for milling plastic crushed scraps into powder uniformly, which can recycle the waste material, and reduce production cost.

SWP-360 Plastic Crusher

Installed with 11kw driving motor, output can reach to 100-200kg/h.which could cooperate with the pulverizer machine very perfect.

Delivery
